Acoustic panels

Polyester Fiber Acoustic Insulation

Build the cavity, not the surface

Cross-lapped polyester fibre batts engineered for efficient sound absorption within walls and ceilings. Designed to work inside the assembly where it matters most.

Discuss your build-up

Wall / ceiling section

Assembly logic that performs

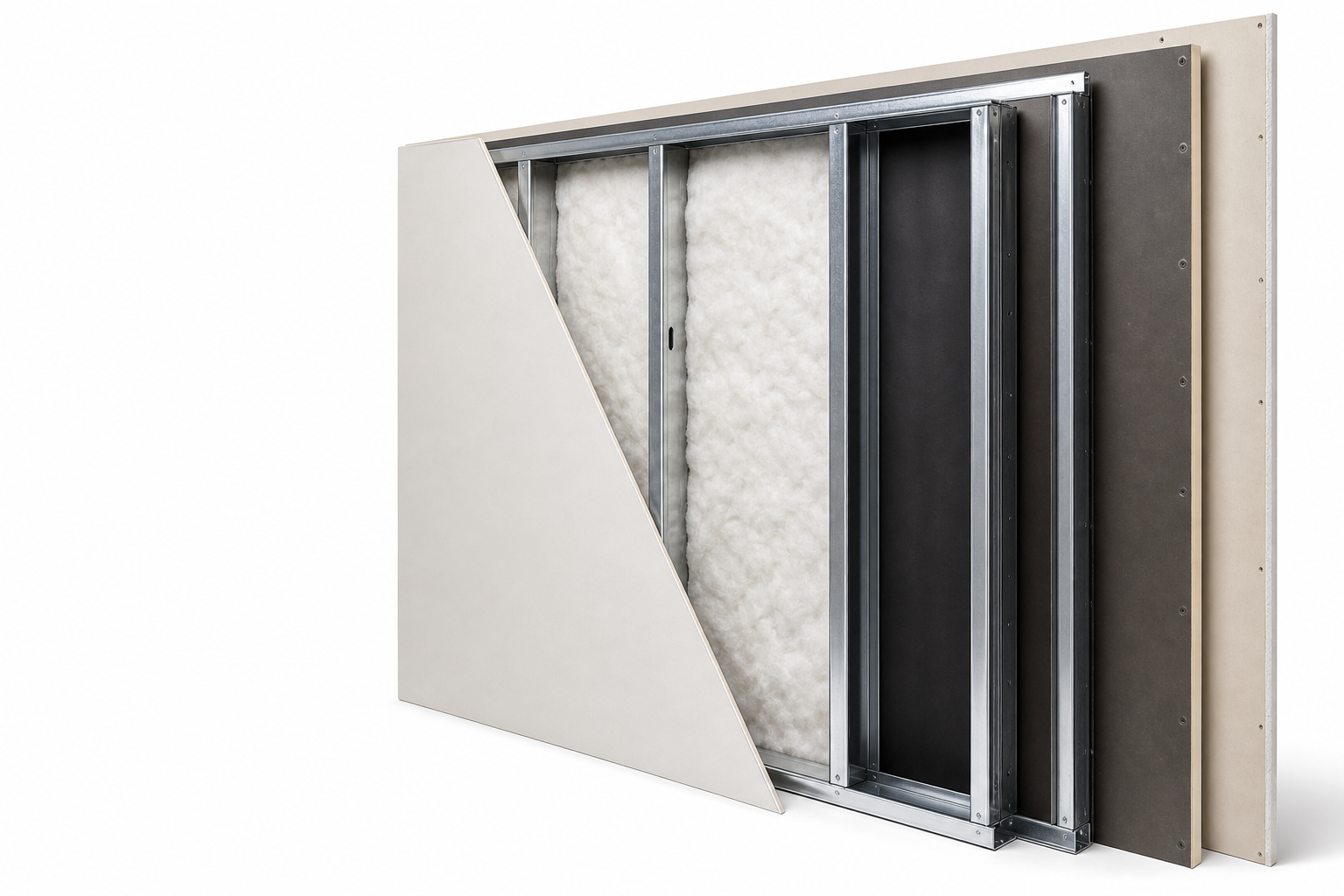

Typical wall assembly cutaway with polyester fibre acoustic insulation — Wall section (typical)

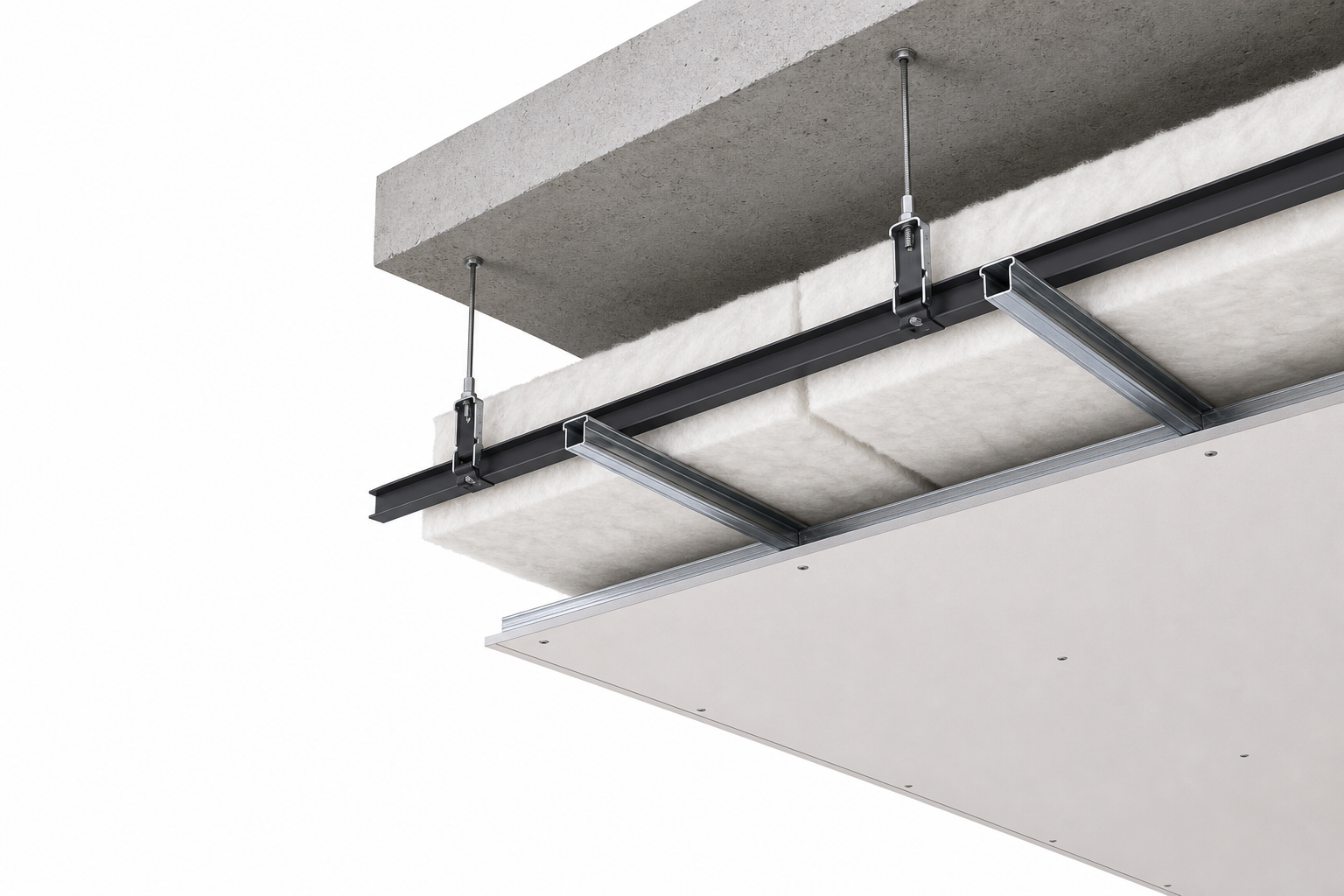

Typical suspended ceiling assembly with polyester fibre acoustic insulation — Suspended ceiling section (typical)

Choose density by assembly

Match density and thickness to your target performance

Density (kg/m鲁)

Thickness (mm)

Higher density and thickness can increase low-frequency absorption potential. Confirm with project-specific testing and overall system design.

Supplied performance

Density (kg/m鲁)	Thickness (mm)	Application	Acoustic function
32	50 / 80 / 100	Ceilings, light partitions	Mid鈥揾igh frequency absorption
48	50 / 80 / 100	Walls, ceilings, studios	Balanced broadband absorption
60	50 / 80 / 100	Walls, cinemas, classrooms	Enhanced low-frequency control
80	50 / 80 / 100	Critical spaces, cinemas	High absorption across low鈥搈id range
96	50 / 80 / 100	High-performance assemblies	Maximum absorption potential

Evidence status

Supplied claim 鈥?current evidence required

This product requires independent application and test evidence for your specific build-up.

Our technical team can support you with test planning, data packages and project documentation.

Discuss your build-up

Detailed supplied performance data

Reference values and claims remain subject to project verification

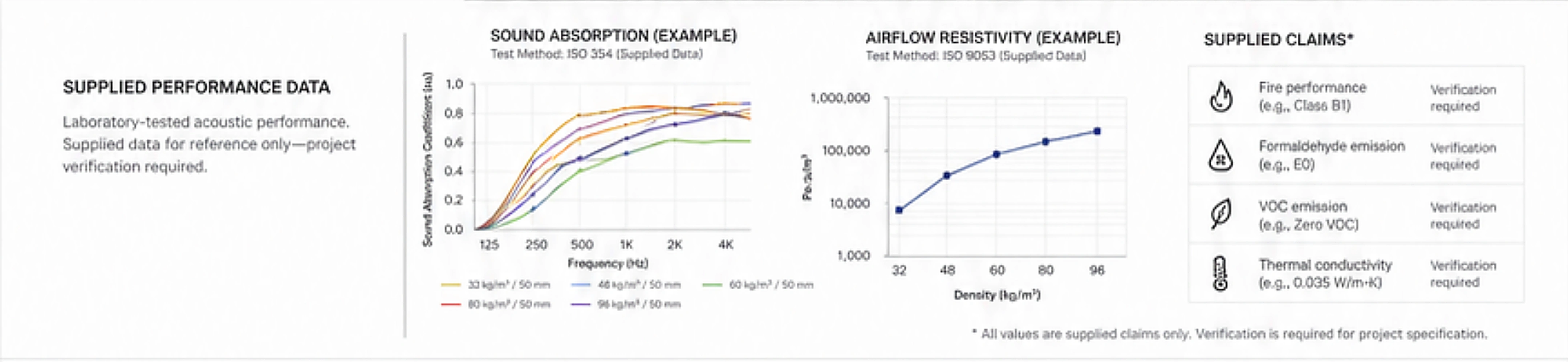

Sound absorption and airflow resistivity chart plots supplied for reference

Supplied performance data

Laboratory-tested acoustic performance.

Supplied data for reference only鈥攑roject verification required.

Sound absorption (example)Test method: ISO 354 (supplied data)

Airflow resistivity (example)Test method: ISO 9053 (supplied data)

Supplied claims*

Fire performancee.g., Class B1Verification required
Formaldehyde emissione.g., E0Verification required
VOC emissione.g., Zero VOCVerification required
Thermal conductivitye.g., 0.035 W/m路KVerification required

* All values are supplied claims only. Verification is required for project specification.

Material anatomy

Cross-lapped polyester fibres create interconnected voids that convert sound energy into heat through friction and air movement.

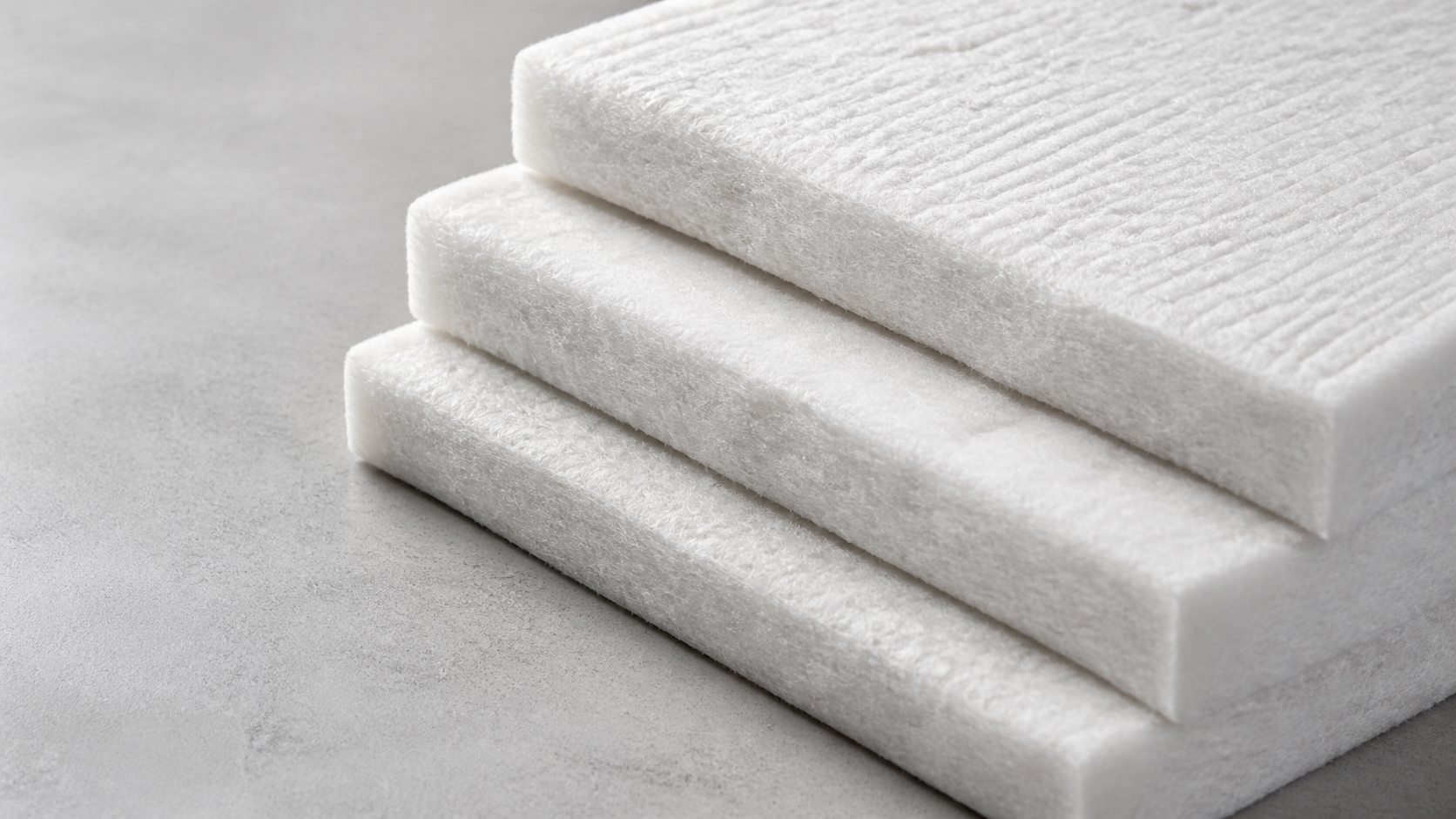

Layered polyester fibre acoustic insulation batt edge

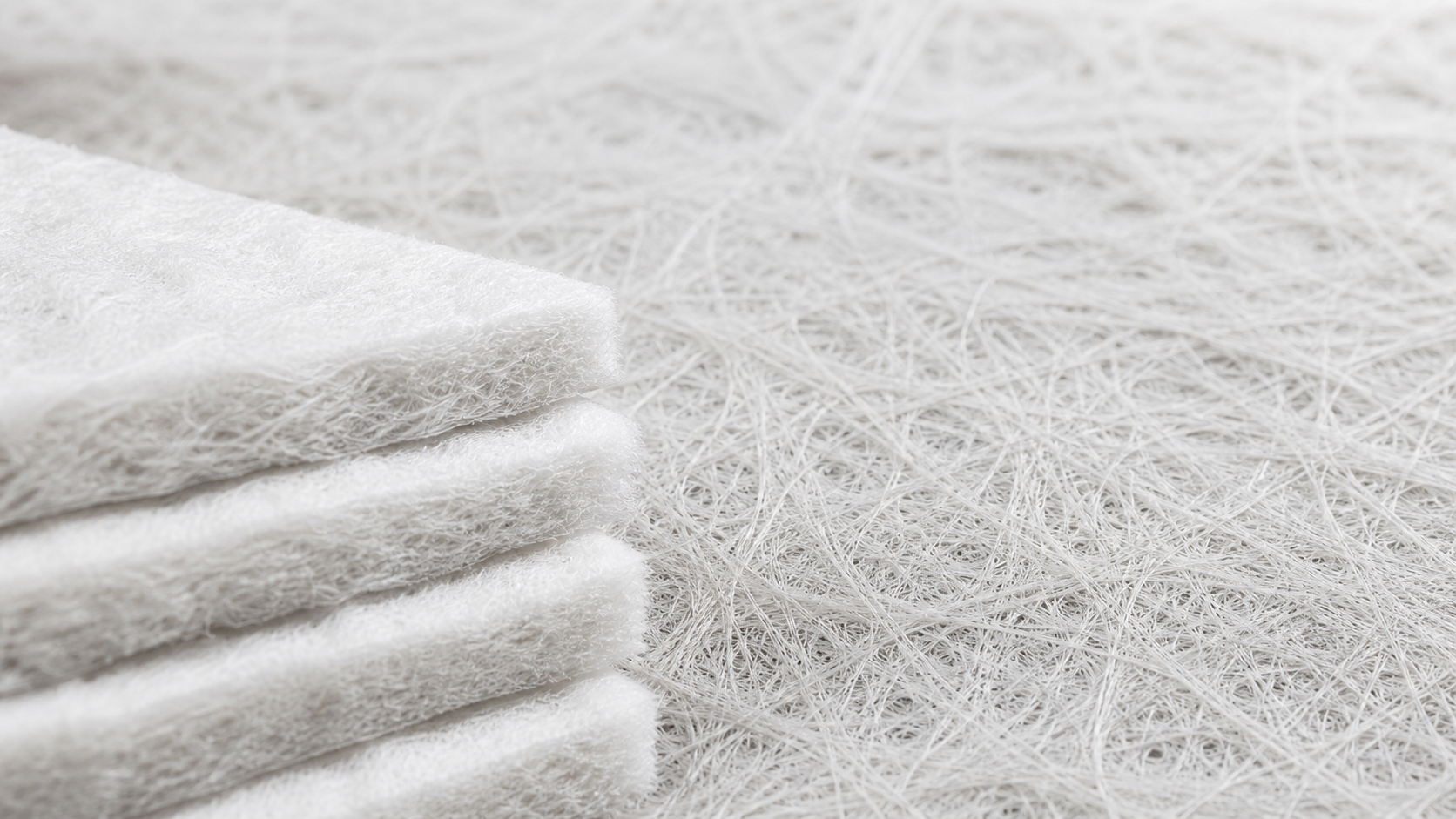

Macro view of the polyester fibre structure

Applications

Versatile across demanding acoustic environments

Recording studios acoustic application direction — Recording studios

Cinemas & theatres acoustic application direction — Cinemas & theatres

Classrooms acoustic application direction — Classrooms

Hotel partitions acoustic application direction — Hotel partitions

Sports venues acoustic application direction — Sports venues

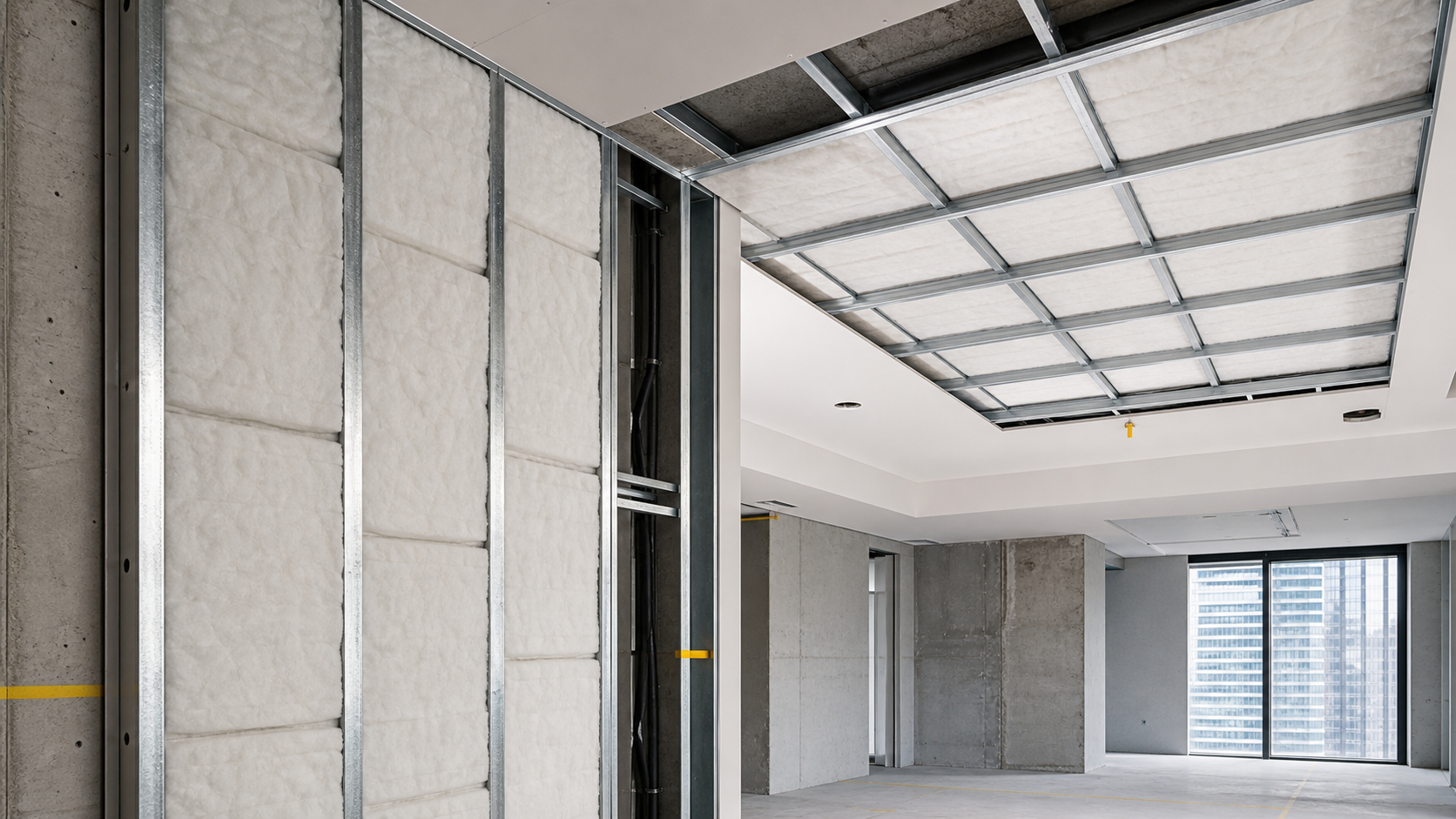

Mechanical rooms acoustic application direction — Mechanical rooms

Frequently asked questions

Questions before selecting Polyester Fiber Acoustic Insulation.

Clear the material, mounting and evidence questions before the product is released into a project.

01How should Polyester Fiber Acoustic Insulation be selected for a project?

Select density and thickness against the intended cavity, target absorption range and the approved wall or ceiling assembly.

02Which technical information should be confirmed before specification?

Confirm the current product code, dimensions, finish, mounting method, acoustic test conditions and fire evidence against the exact proposed build-up.

03Can this material be used on both walls and ceilings?

Wall and ceiling applications require the exact build-up, cavity depth, linings, support system and current test evidence to be confirmed before release.

04How do I begin a sample or technical enquiry?

Send the room type, drawings or elevations, substrate, target programme and any required compliance information. The project team can then identify the documents and sample route needed for review.
